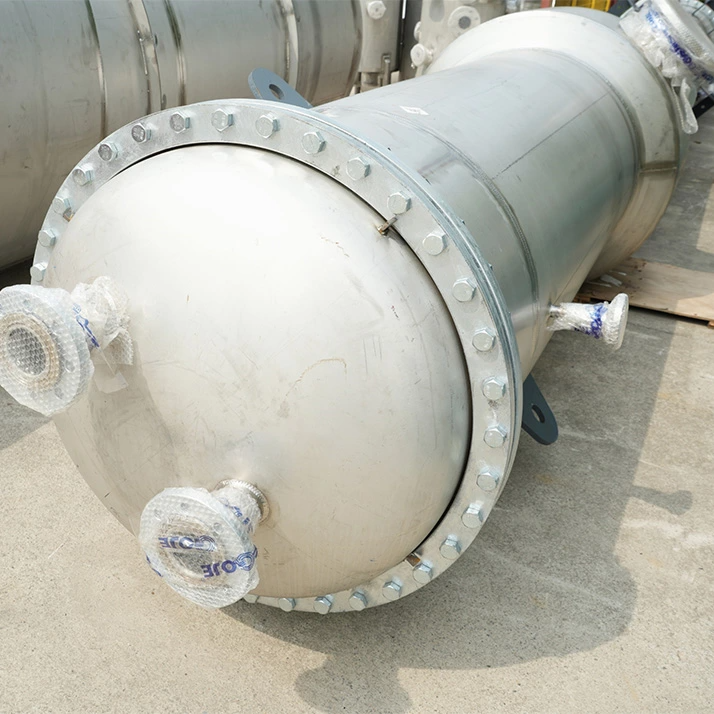

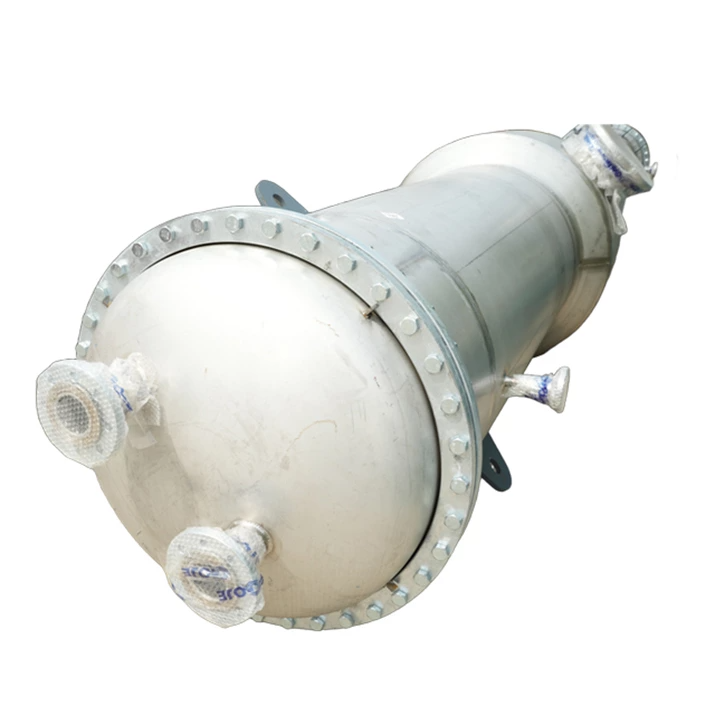

The Shell and Tube Condenser is a highly reliable heat transfer device designed to condense vapor into liquid by transferring heat to a cooling medium. It is widely used in industrial systems where efficient condensation and stable operation are required.
Due to its strong mechanical structure and ability to operate under high pressure and high temperature conditions, the shell and tube condenser is commonly used in industries such as chemical processing, power generation, refrigeration, and oil & gas.
Compared to other compact heat exchangers, shell and tube condensers offer excellent durability, easy maintenance, and large processing capacity, making them a dependable solution for continuous industrial operations.
MG-TECH provides high-performance shell and tube condensers designed to deliver efficient condensation, long service life, and reliable system performance.

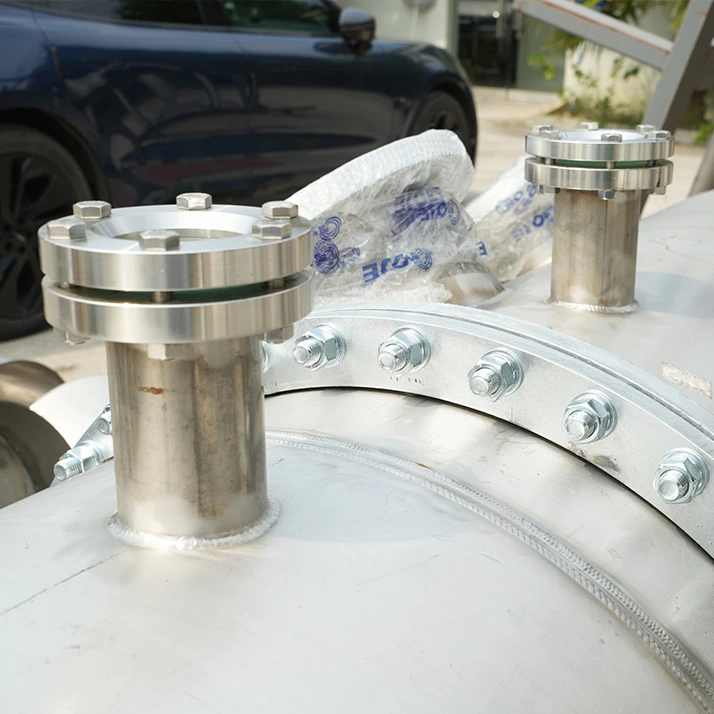

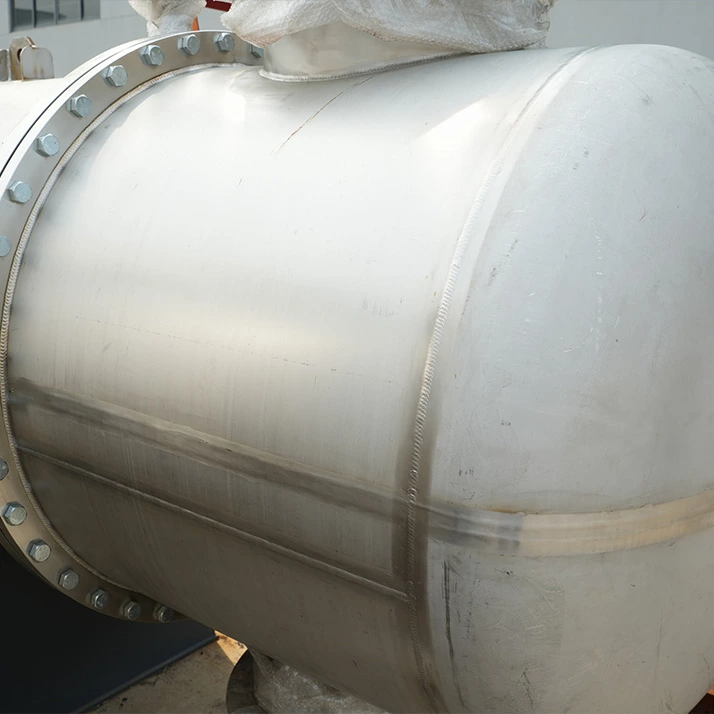

The shell and tube condenser is built from several main components including the shell, tube bundle, tube sheet, baffles, and head. Each component can be independently designed or replaced depending on operating conditions, making maintenance easier and allowing flexible customization.
By using process separation baffles and multi-pass designs, various tube-side and shell-side flow arrangements can be achieved, such as 1-2 pass or 2-4 pass configurations. This allows engineers to optimize fluid flow paths and improve overall heat transfer efficiency.
The condenser provides a large heat transfer area within a compact structure. System capacity can be increased by extending the tube bundle length or increasing the number of tubes, making it suitable for both small industrial systems and large-scale production facilities.
The balance between heat transfer efficiency and pressure drop can be optimized by adjusting parameters such as tube diameter, tube layout (triangular or square), and baffle spacing. This helps maintain efficient and stable operation.

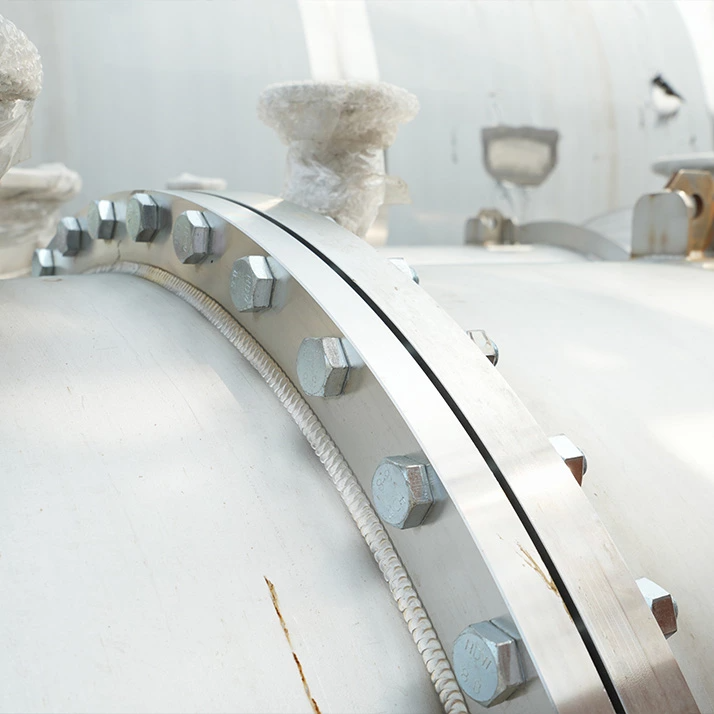

Excellent sealing performance with minimal leakage
High condensation and heat transfer efficiency
Easy inspection and maintenance
Strong corrosion resistance and long service life
Reliable operation under demanding industrial conditions
Suitable for large-capacity industrial processes
The shell and tube condenser operates by transferring heat between two fluids at different temperatures while keeping them separated.
The vapor or hot fluid flows inside the tubes, while the cooling medium flows around the tubes inside the shell. As heat transfers through the tube walls, the vapor cools down and condenses into liquid.
To improve heat transfer efficiency, baffles are installed inside the shell. These baffles direct the shell-side fluid across the tube bundle multiple times, increasing fluid velocity and turbulence. This significantly enhances the heat transfer process.
The tubes inside the condenser can be arranged in different patterns on the tube sheet:
Triangular arrangement – provides compact layout and higher turbulence for improved heat transfer.
Square arrangement – allows easier cleaning and is suitable for fluids that may cause scaling.
