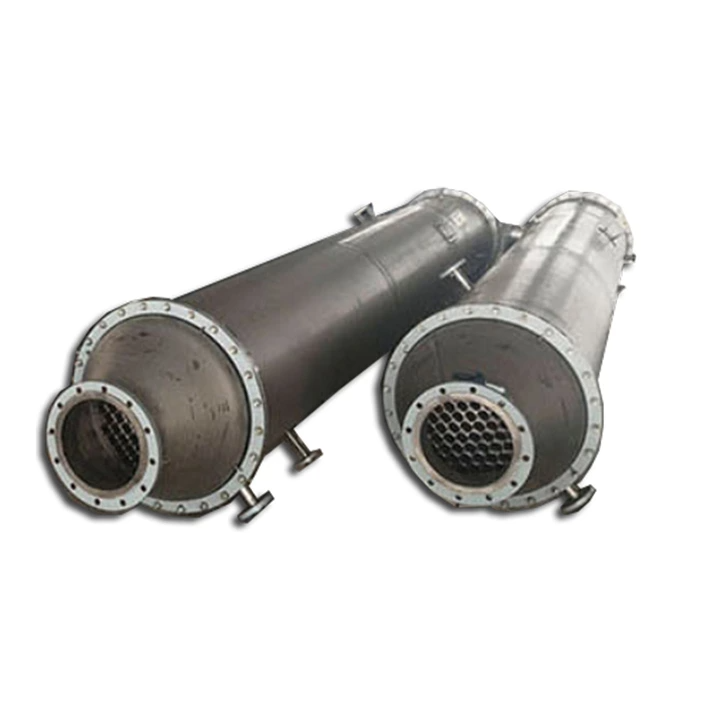

The Shell and Tube Heat Exchanger is one of the most widely used heat transfer systems in industrial applications. Known for its durability, reliability, and high processing capacity, this type of heat exchanger is designed to efficiently transfer heat between two fluids while keeping them physically separated.
The Shell and Tube Heat Exchanger is one of the most widely used heat transfer systems in industrial applications. Known for its durability, reliability, and high processing capacity, this type of heat exchanger is designed to efficiently transfer heat between two fluids while keeping them physically separated.
Although plate heat exchangers often provide higher heat transfer efficiency in compact spaces, shell and tube heat exchangers remain highly popular due to their ability to handle high pressure, high temperature, and large industrial loads. Their robust structure, simple maintenance, and cost-effective manufacturing make them an ideal choice for many industries.
MG-TECH provides high-quality shell and tube heat exchangers that are widely used as coolers, heaters, and condensers in various industrial systems.
The shell and tube heat exchanger consists of several key components, including the shell, tube bundle, tube sheet, baffles, and head. Each component can be designed or replaced independently, allowing flexible customization for different operating conditions and making maintenance easier.
With the use of internal baffles and multi-pass flow design, the system can support various tube-side and shell-side flow arrangements. This flexibility allows engineers to adjust the fluid path and flow rate, helping to improve overall heat transfer performance.
Shell and tube heat exchangers provide a large heat transfer area within a compact structure. The system capacity can be increased by extending the tube length or increasing the number of tubes, making it suitable for both small industrial systems and large-scale processing plants.
By adjusting parameters such as tube diameter, tube layout (triangular or square), and baffle spacing, the system can achieve an optimal balance between pressure drop and heat transfer performance. This helps improve efficiency while maintaining stable system operation.
A shell and tube heat exchanger works by allowing two fluids at different temperatures to exchange heat without mixing.
One fluid flows inside the tubes, known as the tube-side fluid, while the other fluid flows around the tubes inside the shell, known as the shell-side fluid. Heat transfers through the tube walls from the hotter fluid to the cooler one.
To improve heat transfer efficiency, baffles are installed inside the shell. These baffles guide the shell-side fluid across the tube bundle multiple times, increasing fluid velocity and turbulence, which significantly enhances heat transfer performance.

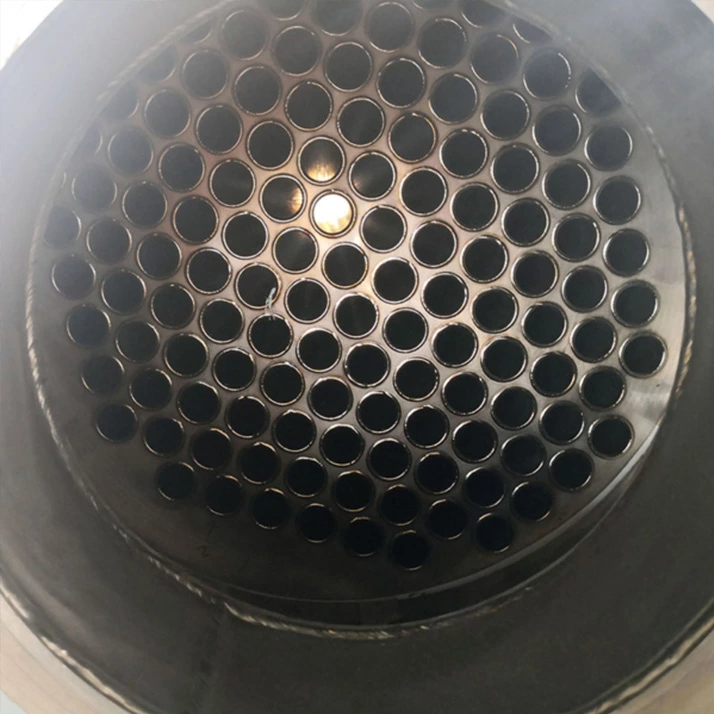

The tubes inside the exchanger can be arranged in triangular or square patterns on the tube sheet:
Triangular arrangement provides higher turbulence and better heat transfer efficiency.
Square arrangement allows easier cleaning and is suitable for fluids that tend to form scale.
Reliable and durable industrial design
High heat transfer efficiency
Excellent sealing performance with minimal leakage risk
Suitable for high temperature and high pressure applications
Easy maintenance and cleaning
Long service life with strong corrosion resistance
Capable of handling large processing capacities
